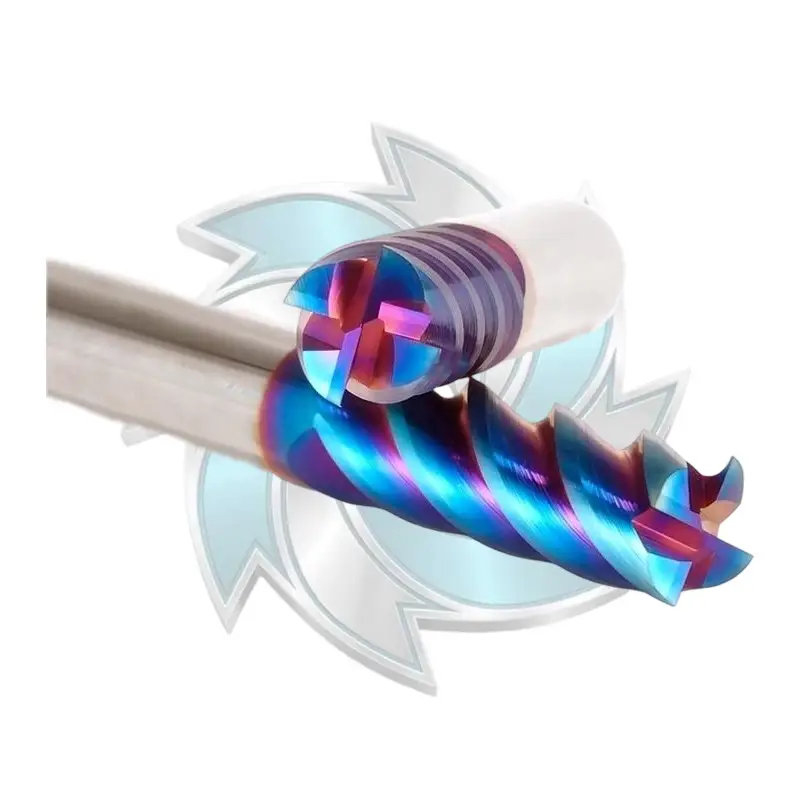

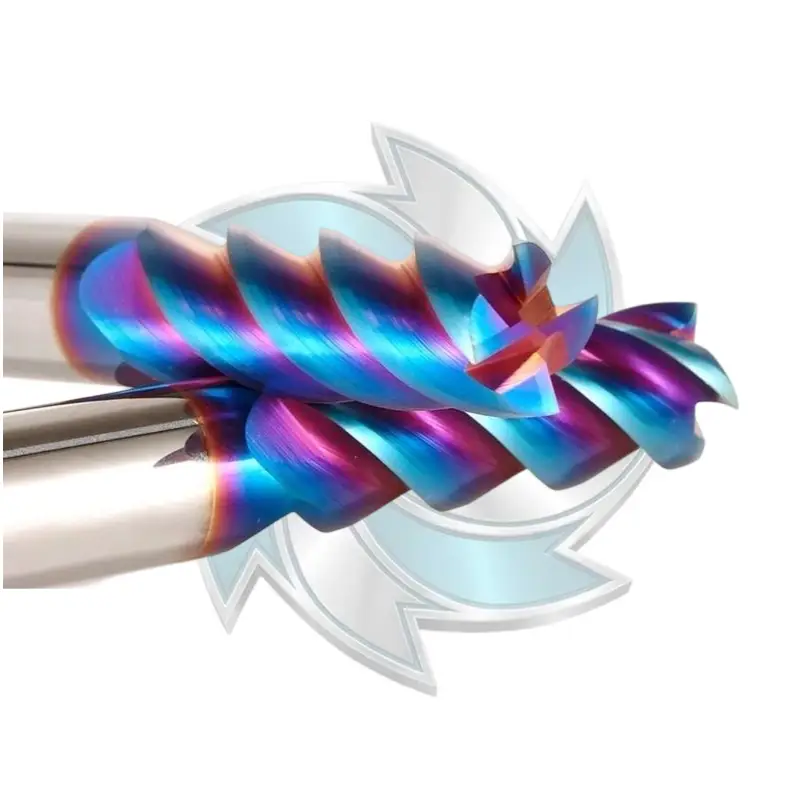

The HRC65 4 flute end mill is an industrial-grade solid carbide milling tool engineered for high-efficiency side milling, slotting, and profiling on hardened steels up to HRC65. Featuring an ultra-fine 0.4 μm grain tungsten carbide substrate, this high-performance HRC65 4-flute flat end mill cutter delivers twice the tool life and metal removal rate compared to conventional two-flute tools.
Manufactured by Durable Mills, the HRC65 4 flute end mill series is precision-engineered for aggressive metal removal and superior surface finishing on extremely hard materials. Built on a premium micro-grain tungsten carbide substrate (0.4 μm grain size, 12% cobalt content, and HRA92.5–93 hardness), this solid carbide 4 flute flat milling cutter provides extreme structural rigidity, minimized vibration, and thermal stability in high-speed CNC machining centers.
| Property | Technical Value |
|---|---|
| Cobalt Content (Co) | 12% |
| Carbide Grain Size | 0.4 μm (Ultra-Fine Micro-Grain) |
| Hardness Rating | HRA 92.5 – 93.0 |
| Workpiece Hardness Range | Up to HRC65 |
| ISO | Workpiece Material | Depth of Cut (ap) | Width of Cut (ae) | Cutting Speed (Vc) | Feed Per Tooth (fz) |
|---|---|---|---|---|---|
| P | Carbon Steel / Alloy Steel (<35 HRC) | ap ≤ 1.5D | ae ≤ 0.1D | 120 m/min | 0.006D mm/z |
| P | Alloy Steel (35–48 HRC) | ap ≤ 1.5D | ae ≤ 0.1D | 80 m/min | 0.0035D mm/z |
| M | Stainless Steels | ap ≤ 1.5D | ae ≤ 0.1D | 100 m/min | 0.006D mm/z |
| K | Gray Cast Iron, Ductile Cast Iron (<32 HRC) | ap ≤ 1.5D | ae ≤ 0.1D | 120 m/min | 0.0055D mm/z |
| H | Alloy Steel, Hardened Steel (45–65 HRC) | ap ≤ 1.0D | ae ≤ 0.05D | 60–80 m/min | 0.003D mm/z |

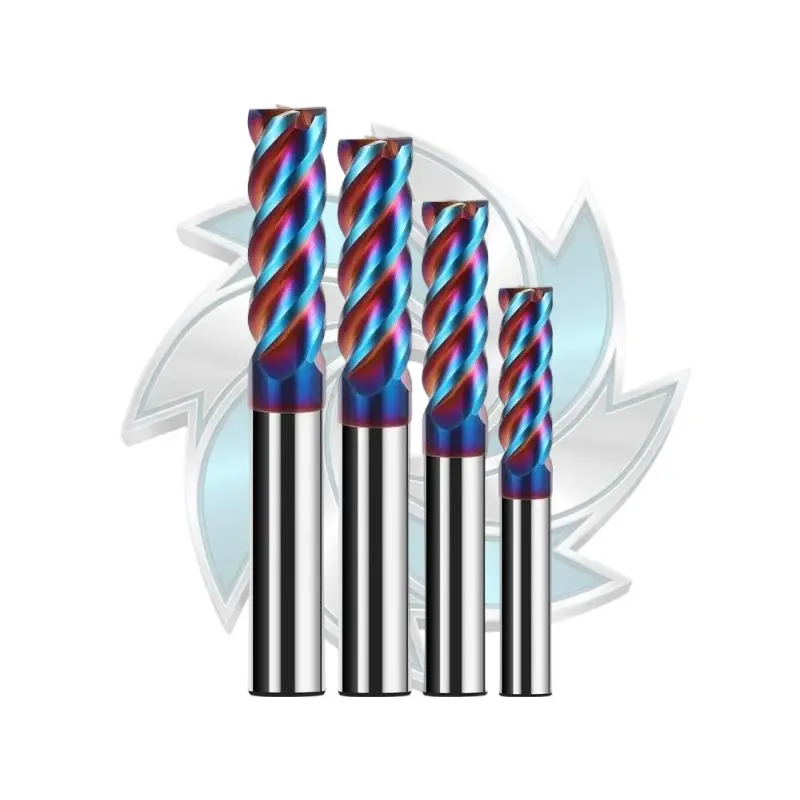

| Model Type | Cutting Dia (D) mm | Flute Length (Lc) mm | Shank Dia (d) mm | Total Length (L) mm | Flutes |
|---|---|---|---|---|---|
| DM-3*8*3*50*4T | 3 | 8 | 3 | 50 | 4 |
| DM-3*12*3*75*4T | 3 | 12 | 3 | 75 | 4 |
| DM-3*15*3*100*4T | 3 | 15 | 3 | 100 | 4 |
| DM-1*3*4*50*4T | 1 | 3 | 4 | 50 | 4 |
| DM-1.5*4*4*50*4T | 1.5 | 4 | 4 | 50 | 4 |
| DM-2*5*4*50*4T | 2 | 5 | 4 | 50 | 4 |
| DM-2.5*7*4*50*4T | 2.5 | 7 | 4 | 50 | 4 |
| DM-3*8*4*50*4T | 3 | 8 | 4 | 50 | 4 |
| DM-3.5*10*4*50*4T | 3.5 | 10 | 4 | 50 | 4 |
| DM-4*10*4*50*4T | 4 | 10 | 4 | 50 | 4 |
| DM-4*16*4*75*4T | 4 | 16 | 4 | 75 | 4 |
| DM-4*20*4*100*4T | 4 | 20 | 4 | 100 | 4 |
| DM-5*13*5*50*4T | 5 | 13 | 5 | 50 | 4 |
| DM-5*20*5*75*4T | 5 | 20 | 5 | 75 | 4 |
| DM-5*25*5*100*4T | 5 | 25 | 5 | 100 | 4 |
| DM-1*3*6*50*4T | 1 | 3 | 6 | 50 | 4 |
| DM-1.5*4*6*50*4T | 1.5 | 4 | 6 | 50 | 4 |
| DM-2*5*6*50*4T | 2 | 5 | 6 | 50 | 4 |
| DM-2.5*7*6*50*4T | 2.5 | 7 | 6 | 50 | 4 |
| DM-3*8*6*50*4T | 3 | 8 | 6 | 50 | 4 |
| DM-3.5*10*6*50*4T | 3.5 | 10 | 6 | 50 | 4 |
| DM-4*10*6*50*4T | 4 | 10 | 6 | 50 | 4 |
| DM-4.5*12*6*50*4T | 4.5 | 12 | 6 | 50 | 4 |
| DM-5*13*6*50*4T | 5 | 13 | 6 | 50 | 4 |
| DM-6*15*6*50*4T | 6 | 15 | 6 | 50 | 4 |
| DM-6*25*6*75*4T | 6 | 25 | 6 | 75 | 4 |
| DM-6*30*6*100*4T | 6 | 30 | 6 | 100 | 4 |
| DM-6*40*6*150*4T | 6 | 40 | 6 | 150 | 4 |
| DM-7*18*8*60*4T | 7 | 18 | 8 | 60 | 4 |
| DM-8*20*8*60*4T | 8 | 20 | 8 | 60 | 4 |
| DM-8*28*8*75*4T | 8 | 28 | 8 | 75 | 4 |
| DM-8*35*8*100*4T | 8 | 35 | 8 | 100 | 4 |
| DM-8*50*8*150*4T | 8 | 50 | 8 | 150 | 4 |
| DM-9*23*10*75*4T | 9 | 23 | 10 | 75 | 4 |
| DM-10*25*10*75*4T | 10 | 25 | 10 | 75 | 4 |
| DM-10*40*10*100*4T | 10 | 40 | 10 | 100 | 4 |
It combines an ultra-fine 0.4 μm micro-grain carbide substrate with HRA 92.5–93 hardness and an advanced heat-shielding coating. This structure minimizes cutting resistance and resists notch wear even at elevated cutting temperatures up to 65HRC.
A 4-flute configuration offers significantly higher core strength and rigidity, making it ideal for side milling, profile finishing, and high-speed machining in hard metals where tool deflection must be prevented.
Yes. As a dedicated precision tooling manufacturer, Durable Mills provides complete OEM services, custom flute lengths, neck relief, and custom laser etching for wholesale clients.
